Automatic Bucket Cans Bottle Cap Screwing Machine Four-Wheel Cap Capping Machine With Feeder Elevator For Sauce And Honey Bottle

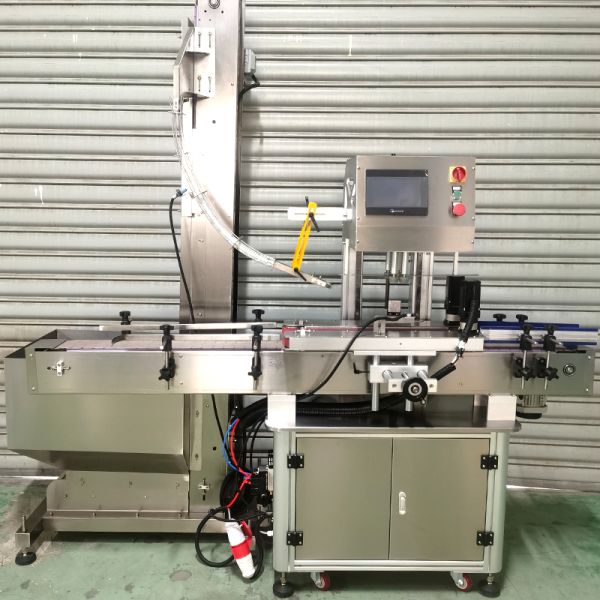

CM140 Chemical & Agrochemical Capping Machine — Robust Sealing for Industrial and Agricultural Products
CM140 automatic 4-wheel capping machine for chemical, agrochemical, and industrial containers. Handles trigger sprayers, pumps, and screw caps on detergent, pesticide, and fertilizer bottles. 304 stainless construction.
- chemical bottle capping machine
- agrochemical capper
- detergent bottle capping
- trigger sprayer capping machine
- industrial container capper
- cleaning product capper
- pesticide bottle sealer
- fertilizer container capping
- chemical packaging capper
- industrial bottle capping
- herbicide container sealer
The Demands of Chemical Packaging
Chemical and agrochemical products — household cleaners, industrial detergents, agricultural pesticides, liquid fertilizers — impose unique demands on packaging equipment. Trigger sprayers must be capped with dip tubes fully inserted. Child-resistant closures on pesticide bottles must engage reliably for regulatory compliance. Cleaning product bottles run at high volumes demand consistent throughput shift after shift. And the machine itself must withstand exposure to chemical vapors, occasional product spills, and frequent cleaning.
The CM140's 4-wheel spindle system, custom cap track engineering for trigger sprayers, and 304 stainless steel construction make it the capping workhorse for chemical and agrochemical packaging lines — delivering >99.99% capping reliability in environments where seal failure is not an option.
Chemical Industry Applications
Household Cleaning Products: All-purpose cleaner bottles with trigger sprayers, glass cleaner spray bottles, bathroom cleaner containers, floor cleaner jugs, disinfectant spray bottles. These products are dominated by trigger sprayer closures — the closure type that the CM140 handles better than any other capping technology.
Laundry & Dish Care: Laundry detergent bottles with dispensing caps or standard screw caps, fabric softener containers, dish soap bottles with flip-top or push-pull caps, dishwasher rinse aid bottles. The range of cap sizes — from 28mm dish soap caps to 100mm detergent jug caps — is fully accommodated by the CM140's 20-100mm cap diameter range.
Industrial Cleaning & Maintenance: Degreaser bottles with trigger sprayers, industrial detergent jugs, floor care product containers, sanitizer bottles. These products often use larger containers (up to the CM140's 200mm bottle diameter capacity) with heavy-duty caps.
Automotive Chemicals: Windshield washer fluid bottles, car wash concentrate containers, automotive polish bottles with flip-top or trigger caps, engine degreaser spray bottles. The CM140 handles the handled jugs and trigger sprayer bottles common in this segment.
Water Treatment: Pool chemical bottles with child-resistant caps, spa treatment containers, water softening salt additive bottles. Child-resistant closures on pool chemicals are a critical safety feature — the CM140's press-and-turn capability ensures these closures engage correctly.
Agrochemical Applications
Herbicides & Weed Control: Spray bottles, concentrate jugs, ready-to-use containers with trigger sprayers or pump dispensers. The trigger sprayer and pump handling that makes the CM140 effective in cosmetic packaging applies equally here.
Fertilizers & Plant Nutrition: Liquid fertilizer bottles with dispensing caps or screw caps, plant food concentrate jugs, foliar spray bottles with trigger sprayers. The variety of container sizes in this category — from small 250ml plant food bottles to large 5L concentrate jugs — is handled by the CM140's adjustable dual-belt clamping system.
Growth Regulators & Specialty Products: Small-volume, high-value agrochemical products often use premium packaging (glass bottles, fine-mist trigger sprayers, precision dispensers) that the CM140's gentle four-wheel capping protects.
Trigger Sprayer Expertise
The trigger sprayer is the most prevalent closure in the chemical and agrochemical industries — and one of the most challenging to cap automatically. The extended dip tube snags on conventional cap tracks. The trigger head's asymmetric shape resists standard capping head geometries. And the dip tube must be inserted cleanly into the bottle without bending, which can cause pump failure.
The CM140 solves each challenge:
- Custom cap track with a dip tube channel that guides the tube during feeding — no snags, consistent orientation
- Four-wheel symmetric tightening applies force around the trigger head's shape — no cocking, no misalignment
- Center compression device presses the trigger sprayer squarely onto the bottle neck, guiding the dip tube into the bottle — no bent tubes, reliable pump function
The result: trigger sprayer capping that achieves the same >99.99% success rate as standard screw caps — eliminating the manual labor that many chemical packagers still use for trigger sprayer application.
Construction for Chemical Environments
- SUS304 stainless steel on all structural and product-contact components — resists corrosion from mild chemical exposure
- Sealed electrical enclosure — prevents vapor ingress that can corrode electronic components
- Silicone capping wheels — chemically resistant, do not degrade from contact with common cleaning product residues
- Aluminum alloy non-contact structural components — lightweight, corrosion-resistant
- Open-frame design — easy to clean, no hidden areas where chemical residue can accumulate
For highly aggressive chemical environments (strong acids, chlorinated solvents), a 316L stainless steel upgrade is available.
Product FAQ
Q: Can the CM140 handle trigger sprayer bottles without an operator manually inserting the dip tube?
A: Yes — this is the CM140's defining capability. The custom cap track guides the trigger sprayer (including its dip tube) through the feeding system. The center compression device presses the trigger straight down onto the bottle neck, guiding the dip tube into the bottle. No manual dip tube insertion is required. This is the feature that allows chemical packagers to fully automate their trigger sprayer capping lines.
Q: Is the CM140 suitable for corrosive chemical environments?
A: The standard CM140 in SUS304 stainless steel with sealed electronics handles most chemical packaging environments — household cleaners, detergents, agrochemicals, automotive fluids. For highly corrosive environments (strong acids, chlorinated solvents, bleach concentrates), contact us about the 316L stainless steel upgrade and enhanced seal materials.
Q: Does the CM140 meet safety requirements for pesticide packaging?
A: The CM140 does not directly address pesticide safety requirements — those are product, packaging, and label specifications regulated in each market. However, the CM140's reliable child-resistant cap engagement (press-and-turn mechanism), seal integrity (>99.99% success rate), and consistent torque application support compliance with packaging integrity requirements for regulated chemical products.
Q: Can the CM140 handle F-style jugs and other non-round containers?
A: The dual-belt clamping system securely grips round containers. For slightly non-round containers (oval bottles, square bottles with rounded corners), the belts can accommodate the geometry with appropriate guide rail setup. For significantly non-round containers (F-style jugs, rectangular bottles), custom guide rails are available. Please send sample containers for compatibility testing.
Q: What maintenance is required in dusty or humid chemical environments?
A: In dusty chemical environments (powder detergent packaging, granular fertilizer areas), we recommend daily compressed air cleaning of the cap track and conveyor. In humid environments, inspect the electrical enclosure gasket monthly for compression set or damage. The silicone capping wheels and stainless steel construction are inherently resistant to the mild chemical exposure typical in packaging halls.
Company FAQ
Q: Do you have experience supplying capping machines to the chemical industry?
A: Yes. Our equipment is used by cleaning product manufacturers, agrochemical companies, and industrial chemical packagers worldwide. We understand the specific challenges: trigger sprayer handling, child-resistant closure engagement, chemical-resistant construction, and high-volume production requirements.
Q: Can you develop a custom cap track for our proprietary trigger sprayer design?
A: Yes. Send us samples of your trigger sprayer, and our engineering team will design and fabricate a custom cap track that accommodates your specific trigger geometry, dip tube length, and orientation features. Custom cap track development is a standard service included with CM140 orders.
Q: What documentation do you provide for chemical industry regulatory compliance? A: We provide: material certificates, surface finish measurements, component specifications, electrical certifications, CE and SGS certificates, and machine design drawings. For customers requiring additional documentation for specific regulatory frameworks, our engineering team can provide supplementary technical data.
