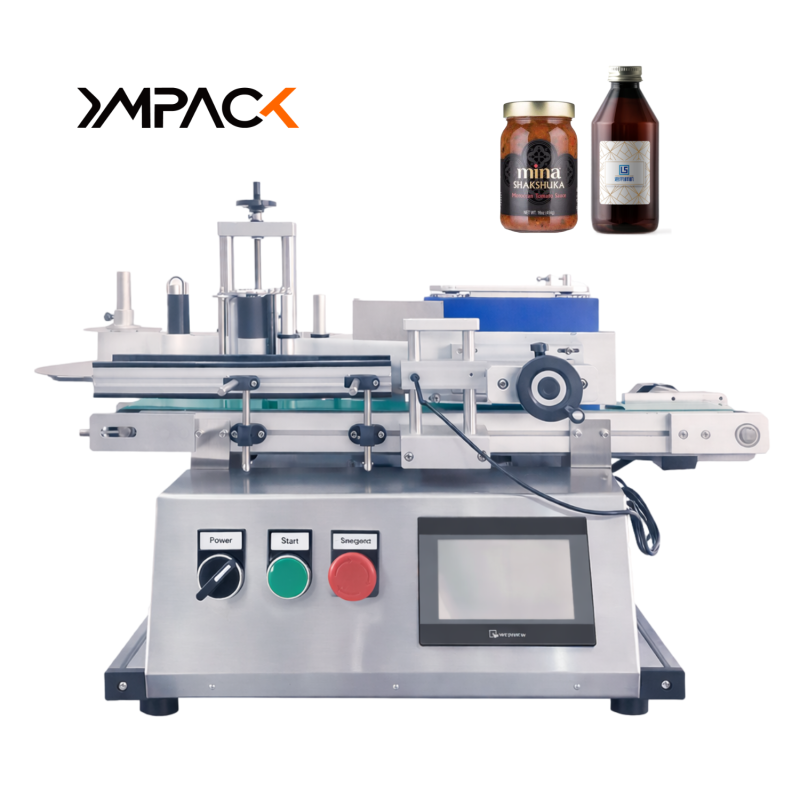

Professional Factory Automatic Tabletop Tagging Machine Essential Oil Bottles Vials Reagent Bottles Labeling Machine

Customize the YM410 automatic labeling machine for your specific application. transparent label sensor, code printer, ink-jet printer, feeding/collecting turntable. 20 years OEM/ODM experience for tailored labeling solutions.

Off-the-shelf labeling equipment forces you to adapt your process to the machine. YIMUPACK's OEM/ODM approach works the opposite direction: we configure the YM410 platform around your specific bottles, labels, throughput targets, and production environment. With 20 years of custom labeling engineering and a dedicated 10–20 person R&D team, the YM410 adapts to your requirements — not the other way around.

The standard sensor detects label gaps optically — it works perfectly for paper, white-film, and most colored labels. But transparent labels (clear BOPP, clear PET, "no-label look" films) lack sufficient optical contrast for reliable gap detection.

The optional transparent label sensor uses ultrasonic or capacitive sensing technology to detect the physical thickness difference between label and backing paper — independent of optical transparency. This enables the YM410 to handle:

• Clear "no-label look" cosmetic labels
• Transparent tamper-evident seals
• Clear pharmaceutical vial labels
• Ultra-clear food packaging labels

Integrate date codes, lot numbers, batch identifiers, and expiration dates directly into the labeling process — no separate coding station required. The code printer module mounts on the label path before the peel edge and prints variable data onto each label immediately before application.

Key specifications:

• Print area: 53mm × 30mm standard (custom sizes available)
• Print resolution: 300 DPI
• Compatible with standard thermal transfer ribbon
• Character set: Alphanumeric, date/time formats, batch counters
• Synchronized with label feed — no additional cycle time

This module eliminates the need for pre-printed date fields on labels, enabling you to stock blank labels and apply variable data at the point of production — a significant inventory simplification for multi-SKU operations.

For larger print areas or full-color variable data, an ink-jet printer can be integrated onto the YM410 conveyor, printing directly onto the bottle surface before or after label application. This is suitable for:

• Full production date and time stamps directly on containers
• QR codes and barcodes for track-and-trace compliance
• Multi-line ingredient lists or regulatory text
• Promotional variable messaging

The ink-jet printer is controlled through its own interface, with print triggering synchronized to the YM410's bottle sensor. Conveyor speed matching ensures print quality at any labeling speed.

For higher-throughput operations where manual bottle loading and unloading becomes the bottleneck, the feeding turntable automates bottle singulation and presentation to the conveyor infeed. The collecting turntable receives labeled bottles at the outfeed, accumulating them for manual or automated packing.

Turntable specifications:

• Feeding turntable diameter: 800mm standard (custom sizes)
• Collecting turntable diameter: 800mm standard (custom sizes)
• Bottle capacity: 100–300 bottles depending on diameter
• Integration: Mechanical and electrical interface with YM410 PLC for coordinated start/stop

With both turntables, one operator can manage the entire labeling cell — periodically loading bulk bottles onto the feeding turntable and removing accumulated labeled bottles from the collecting turntable — rather than continuously hand-feeding and removing individual bottles.

Beyond the standard optional modules, YIMUPACK's R&D team develops fully custom configurations:

Mechanical Customization:

• Extended conveyor length for in-line integration with filling or capping equipment
• Custom guide rail profiles for unusual bottle shapes (oval, square, tapered, flask-form)
• Specialized label head angles for front-and-back or multi-panel labeling
• Conveyor height adjustment to match existing production line elevation
• Stainless steel grade upgrades (316L for aggressive chemical environments)

Electrical Customization:

• Alternative PLC brands per customer standard
• Multi-language HMI interface (English, Spanish, French, Arabic, Russian, Korean, Japanese)
• Voltage and frequency configuration for any global power standard

Application-Specific Engineering:

• Small-diameter vial labeling (penicillin vials, essential oil bottles, test tubes)
• High-humidity washdown configurations with sealed electrical enclosures
• Cleanroom-compatible configurations for pharmaceutical aseptic filling environments

1. Application review: Submit your bottle samples, label samples, and throughput requirements. Our engineering team evaluates feasibility and identifies the optimal configuration approach.

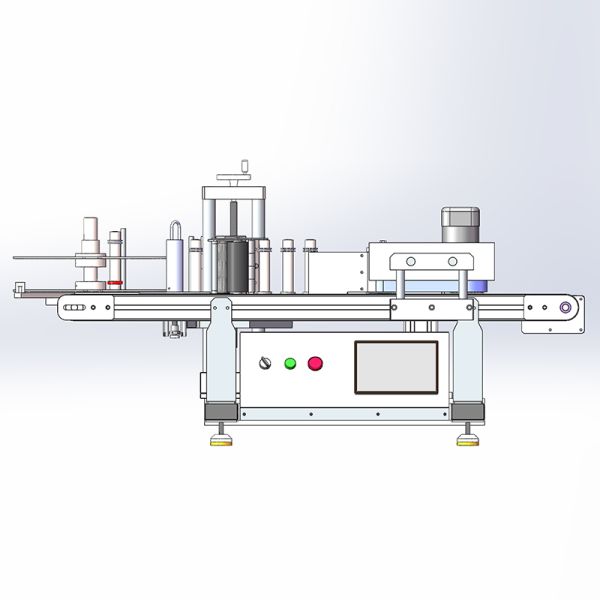

2. Proposal with 3D layout: Receive a detailed proposal including a 3D CAD layout showing your specific bottle in the configured machine, plus cycle time calculations.
3. Design approval and production: Upon approval, custom components enter fabrication. Standard lead time for custom configurations is 30–45 days.
4. Factory acceptance testing: Your configured machine runs a 24-hour test with your actual bottles and labels (shipped to our facility) before crating.
5. Shipping and commissioning: The configured machine ships with full documentation specific to your build.

Q: What's the minimum order quantity for a custom-configured YM410?

A: One unit. We provide full OEM/ODM service for single-machine orders. There is no minimum quantity for customization — the engineering cost is amortized across our broader customer base because we maintain a library of proven custom configurations.

Q: How much does customization add to the lead time?

A: Standard optional modules (transparent sensor, code printer, turntables) add 1–2 weeks. Full custom configurations typically add 2–4 weeks beyond the standard 20–25 day production lead time.

Q: Can you match our existing corporate color for the machine enclosure?

A: Yes. We can powder-coat the aluminum alloy panels in any RAL color at no additional charge for single-machine orders. Stainless steel components remain natural finish.

Q: Do you sign NDAs for custom application development?

A: Yes, we routinely execute mutual non-disclosure agreements before receiving customer bottle samples, label designs, or product formulations. We understand that labeling configuration often reveals product launch details.

Q: Can the turntables handle unstable bottles (tall and narrow)?

A: The feeding turntable includes adjustable guide discs and rotational speed control to accommodate tall/narrow bottles without tipping. For extreme aspect ratios (height > 4× diameter), we recommend testing with sample bottles during the application review phase to confirm stability.

Q: What if my bottle shape doesn't work with the standard YM410?

A: That's exactly what our OEM/ODM service addresses. Submit your bottle and label samples — our R&D team will evaluate whether the standard YM410 platform can be adapted or whether a different YIMUPACK model (such as the YM415 with clamping mechanism for tapered containers) is more suitable.
