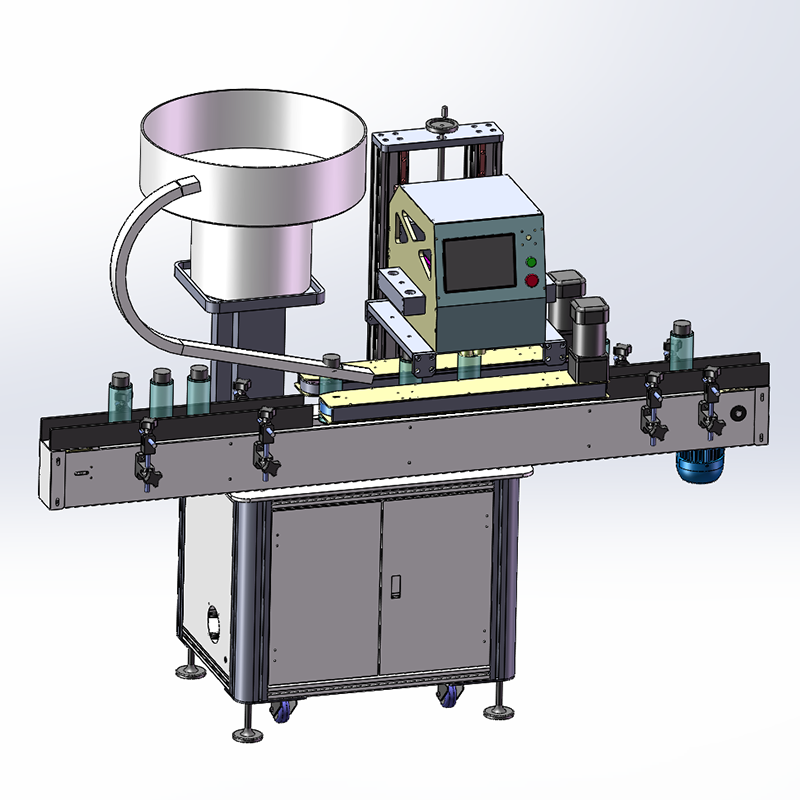

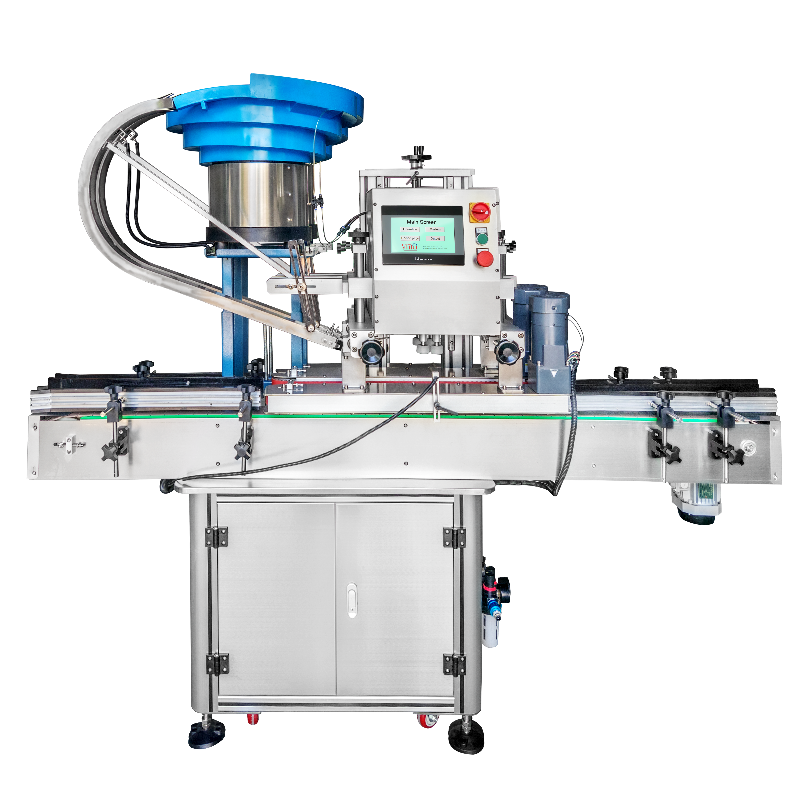

High Speed 40Pcs/min Four Wheel Capping Machine Food and Cosmetic Automatic Capper Machine With Feeder Elevator for Bottles Jars

The CM140's core differentiator is its four-wheel spindle capping head — a mechanism that engages bottle caps from four contact points simultaneously while applying controlled downward compression. Combined with servo motor torque control and synchronized dual-belt bottle clamping, this design achieves capping precision that single-spindle, chuck-style, or snap-capper designs cannot match.

The capping head consists of four rotating wheels arranged in a square pattern around a central vertical axis. Each wheel is mounted on a spring-loaded or pneumatically-adjustable arm that applies radial pressure toward the cap center. The wheels are driven simultaneously via a common gear train or belt drive from a single servo motor.

Why four wheels?

• Two wheels would pinch the cap, potentially deforming it and applying uneven rotational force
• Three wheels create a stable grip but can leave one sector unsupported during rotation
• Four wheels provide 360° engagement — the cap is contacted at four equidistant points, distributing rotational force evenly around the circumference

Standard wheels are food-grade silicone rubber (60-70 Shore A) bonded to aluminum hubs. This provides:

• High friction against cap surfaces (plastic, metal, coated)
• Compliance that conforms to cap surface texture without marring
• Wear resistance for 5+ million cycles before replacement

For specific applications, wheels can be customized:

• Polyurethane wheels (80-90 Shore A) for abrasive cap surfaces or higher torque requirements
• Nylon wheels for very low-torque applications where minimal friction is desired
• Custom diameter wheels for unusually large or small cap diameters

The system maintains ±0.5% torque accuracy. Each capping event is timestamped and logged with:

• Actual peak torque achieved
• Cap presence confirmation
• Pass/fail status
• Bottle count

Many cap types require vertical force to properly seat before rotational tightening begins. The CM140's center compression device — a pneumatic or spring-loaded plunger that descends through the center of the four-wheel assembly — provides this function.

Applications requiring center compression:

• Child-resistant caps (push-down-to-turn mechanism)
• Flip-top caps (hinge must be compressed to engage threads)
• Dropper caps (rubber bulb must be seated in bottle neck before collar threading)
• Tamper-evident caps (bridge band must engage bottle bead)

Single-belt or rail-guided bottle transport often allows bottles to rotate during capping — especially round bottles on a moving conveyor. The CM140 eliminates this with two opposing belts running the full length of the capping zone.

Dual-motor, single-VSD architecture:

• Two independent motors, one per belt
• Both motors controlled by a single variable-speed drive
• Master-slave synchronization ensures both belts run at identical linear speed
• Tension is individually adjustable to accommodate tapered bottles

Q: How often do the silicone capping wheels need replacement? A: Under normal production (single shift, 300 days/year), silicone wheels last 5-8 million cycles — approximately 2-3 years. Harder cap materials (metal, glass-filled plastic) reduce wheel life; softer materials extend it. Wheel wear is visible on inspection; replacement takes under 10 minutes.

Q: Do you provide spare parts kits with the machine? A: Yes. We recommend a startup spare parts kit including: 1 set of silicone capping wheels, 1 set of conveyor belts, 2 bowl track segments, common sensor replacements, and pneumatic seals. Customized kits based on your production volume are available.

Request a technical consultation for the CM140 four-wheel capping mechanism configured to your cap and bottle specifications.
